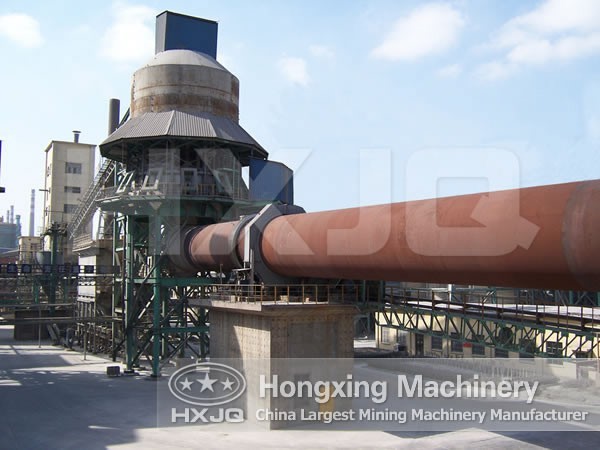

Lime kiln, also known as lime rotary kiln or lime pit, belongs to rotary kiln; it is main equipment to calcine active lime, composed of cylinder body, support device, bearing device with hydraulic gear wheel, transmission device, lubrication device and sealing device, with simple structure, reliable operation and convenient automatic control.
The horizontal kiln has advanced structure; it adopts reliable combined-type scales seal on both ends of the machine, so that the air leakage coefficient is less than 10%; kiln lining uses composite refractory, reducing radiation heat loss; in addition, horizontal lime kiln makes full use of waste heat, which can preheat secondary air into the kiln to 700 ℃ or above, saving energy greatly.
.jpg)
Pulverized coal produces heat in the furnace, then the heat is conducted to materials through gas or radiation; at the same time, kiln body keeps turning according to the design of slope and speed, and raw materials also periodically roll forward in the stove so that they can be sent to discharging end from feeding end.
Hongxing company is always committed to the improvement of limestone rotary kiln. We will try our best to make progress in the performance of lime rotary kiln!
| Design capacity (t/d) |
150 | 200 | 250 | 300 | 350 | 400 | 500 | 600 | 750 | 800 | 1000 | |
| Product | Active lime Calcined dolomite |
Active lime Calcined dolomite |
Active lime Calcined dolomite |
Active lime Calcined dolomite |
Active lime Calcined dolomite |
Active lime Calcined dolomite |
Active lime Calcined dolomite |
Active lime Calcined dolomite |
Active |
Active lime Calcined dolomite |
Active lime Calcined dolomite |
|
| Preheater | round vertical pre- heater or polygonal vertical pre- heater |
round vertical pre- heater or polygonal vertical pre- heater |
round vertical pre- heater or polygonal vertical pre- heater |
round vertical pre- heater or polygonal vertical pre- heater |
round vertical pre- heater or polygonal vertical pre-heater |
round vertical pre- heater or polygonal vertical pre- heater |
round vertical pre- heater or polygonal vertical pre- heater |
round vertical pre- heater or polygonal vertical pre- heater |
Vertical Polygon preheater |
Vertical Polygon preheater |
Vertical Polygon preheater |
|
| Rotary kiln |
Specification （m） |
Φ2.5 × 40 |
Φ2.8 × 42 |
Φ3 × 46 |
Φ3.2 × 50 |
Φ3.5 × 54 |
Φ3.6 × 56 |
Φ3.8 × 58 |
Φ4×60 Φ4.2×50 |
Φ4.3 × 58 |
Φ4.3 × 64 |
Φ4.8 × 68 |
| Effective volume （m³） |
142 | 190 | 235 | 292 | 390 | 430 | 505 | 575/548 | 670 | 738 | 1005 | |
| Burning temperature （°C） |
1350/ 1250 |
1350/ 1250 |
1350/ 1250 |
1350/ 1250 |
1350 | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 | |
| Cooler | Vertical Square Cooler |
Vertical Square Cooler |
Vertical Square Cooler |
Vertical Square Cooler |
Vertical Square Cooler |
Vertical Square Cooler |
Vertical Square Cooler |
Vertical Square Cooler |
Vertical Square Cooler |
Vertical Square Cooler |
Vertical Square Cooler |
|
| Fuel | Coal gas Coal powder |
Coal gas Coal powder |
Coal gas Coal powder |
Coal gas Coal powder |
Coal gas Coal powder |
Coal gas Coal powder |
Coal gas Coal powder |
Coal gas Coal powder |
Coal gas Coal powder |
Coal gas Coal powder |
Coal gas Coal powder |
|
| Heat rate ( KJ/KgC3O
) |
5300/ 5000 |
5300/ 5000 |
5300/ 5000 |
5300/ 5000 |
5225 | 5225 | 5100 | 5100 | 4810 | 4810 | 4810 | |
